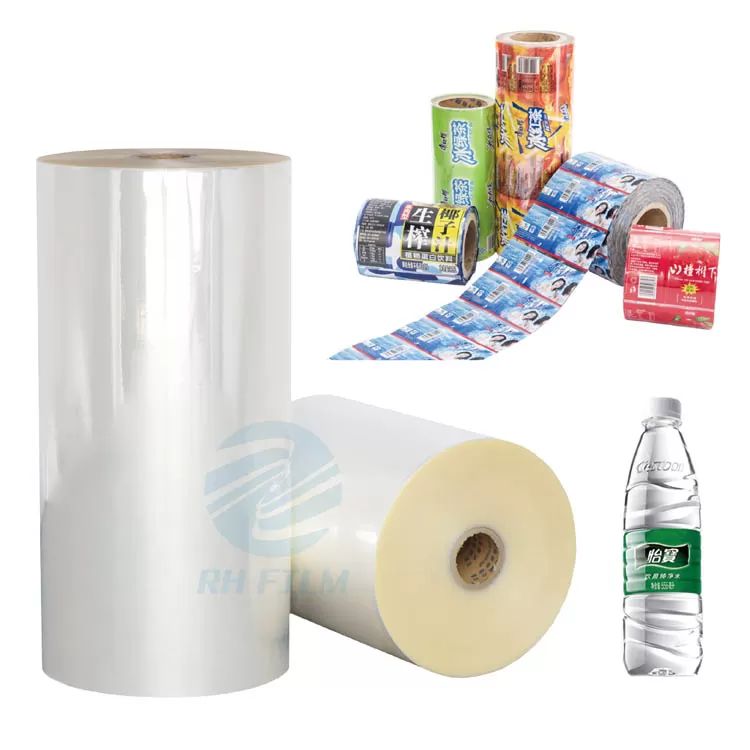

PVC SHRINK FILM(Polyvinyl Chloride)is the most common shrink film type in the market now. Printing grade pvc shrink film is one kind of economic packaging material with good quality which is widely used in all kinds of packaging industry,such as food,beverage and other daily use.
PVC is a high density film that shrinks at low temperature ranges.The most commonly used shrink sleeve material for the market.It has excellent shrinkage rates,clarity,print quality,and a wide range of both shrink temperatures and shrink ratios.PVC also has high impact strength for extra weather resistance.This scuff resistant shrink sleeve material has the lowest cost.
Technical Data Sheet(TDS)
PVC shrink film for label printing
Max Width: 1200mm, the thickness can be customized
| Test ltem | Unit | Standard Value | Test Method | |
| Width | mm | +5 | GB/T 6672 | |
| Thickness | % | ±5 | ||

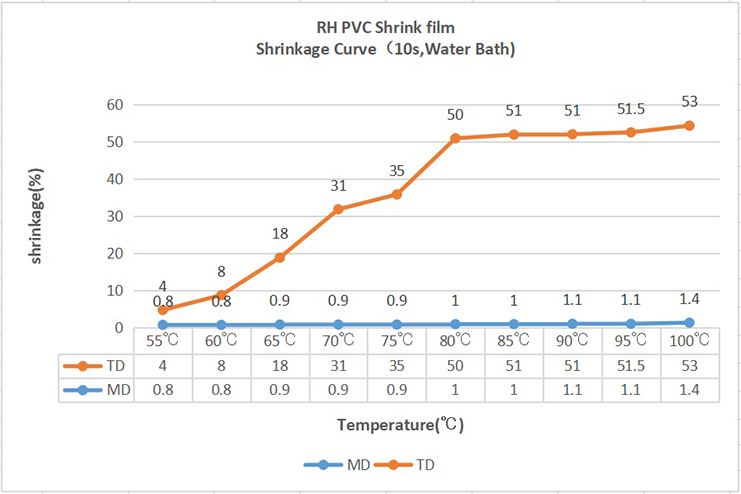

| Heat Shrinkage | MD | % | ≤2 | BB/T 0070 Water bath 95℃/10s |
| TD | % | ≥50 | ||
| Tensile Strength | MD | MPa | ≥42 | GB/T1040.3 |
| TD | MPa | ≥50 | ||
| Elongation at Break | MD | % | ≥70 | |
| TD | % | ≥50 | ||
| Tear Strength | MD | KN/m | ≥60 | GB/T 10006(AB) |
| TD | KN/m | ≥45 | ||
FILM STYLE
There are 3 styles normally.

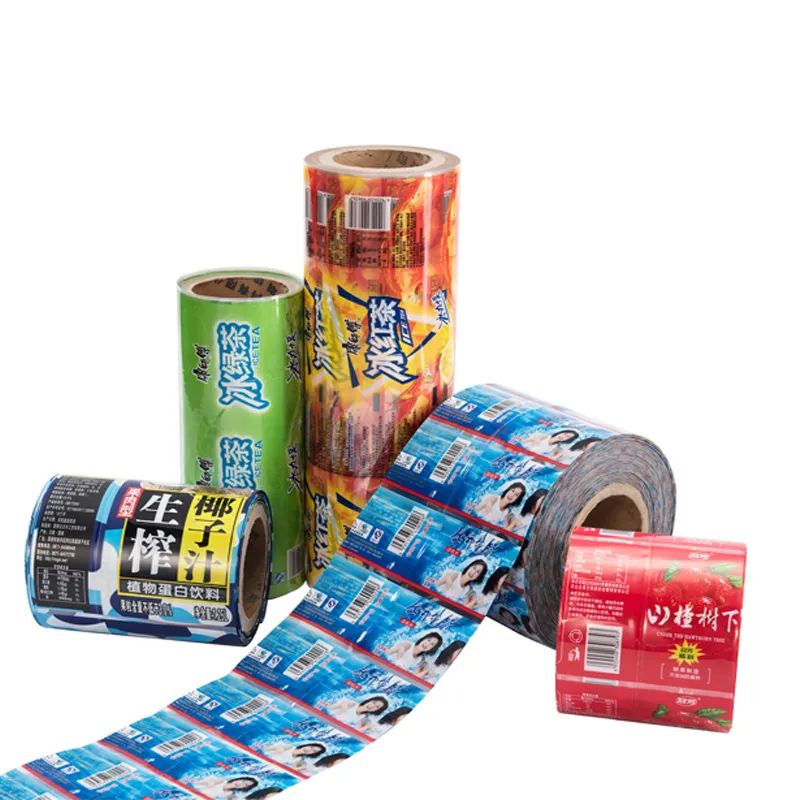

Roll means Flat single film（a single layer） It's for label printing mainly, Suitable for a variety of product packaging and printing applications
Folded Edge Film: This film has a special design that is folded at the edges. Hem films are often used to provide additional edge strength and protection, and are easier to handle and manipulate during application.
Sleeve / Tube means Tubular Film: Tubular film is made in tubular form during the production process. It can form a film bag by sealing the edge, which is suitable for packaging larger or irregularly shaped products.
TYPES OF LABELING
There are 3 styles normally.
Shrink film seals that show if a product has been tampered with, ensuring safety and integrity.
Packaging materials used for partially wrapping containers, providing brand display and decorative effects.
Shrinkable sleeves that fully wrap around containers and provide a secure seal.
INDUSTRIES MARKETS
PVC shrink film is generally the most cost competitive material, and it isalso easiest to control in the shrink process.Therefore, it is used indifferent industrial areas.PVC shrink films are widely used in wine,food, sporting goods, disinfection tableware, electronic appliances, dailynecessities, handicrafts, maintenance products, audio-visual products,medicines, stationery,toys, portals, plastic hardware, glass ceramics,etc. lts appearance is more distinct and beautiful, improving theproduct packaging grade, and protecting the product from dust andflowers. lt is an ideal film packaging material.
Beverage
Wine
Beer
Spirits
Nutraceuticals
Food Container
Household Products
Personal Care
Others
PVC shrink film is ideal for food manufacturers or processing plants. RH is a manufacturer of shrink wrap materials, you can Contact Us with any questions.
